mcb manufacturing company

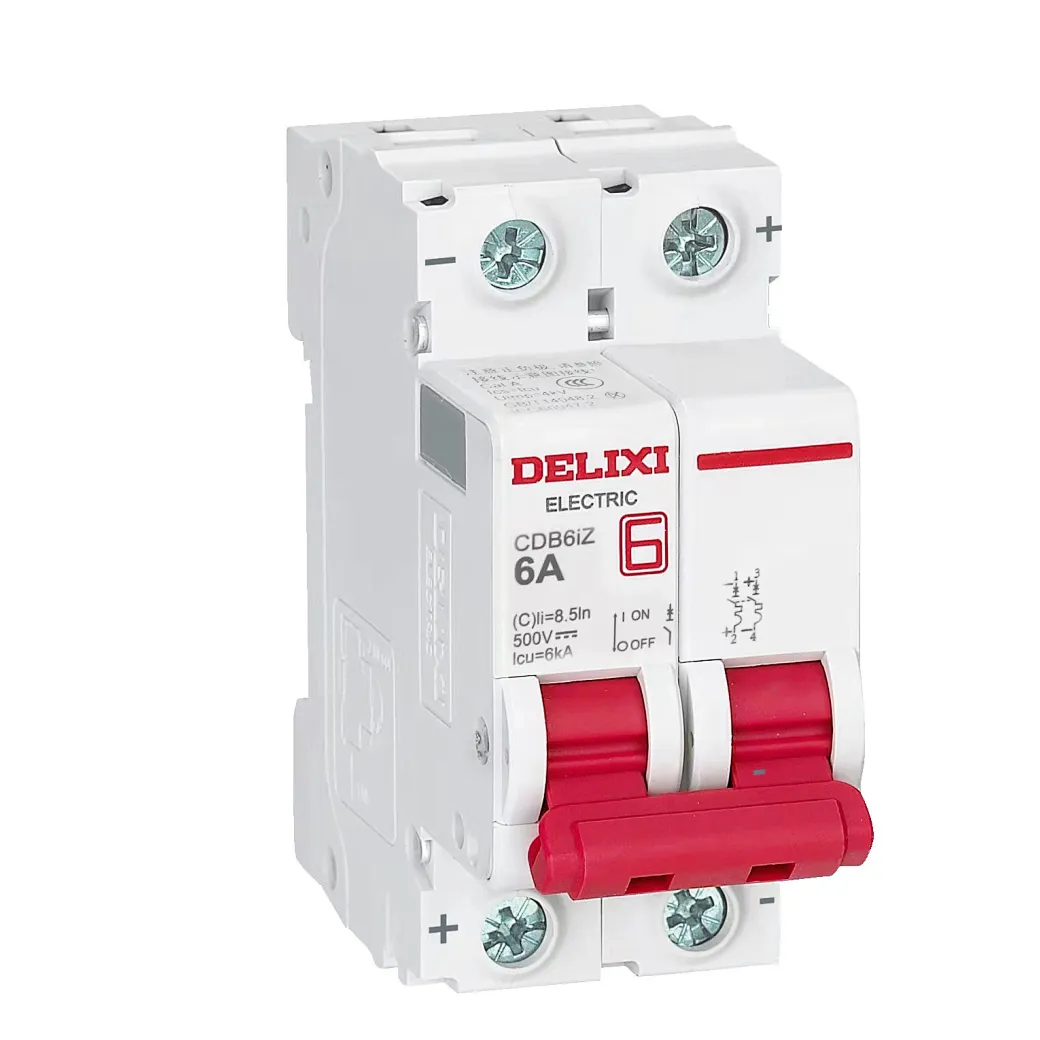

CDB6iZ DC miniature circuit breaker

CDB6iZ
Quantity
Contact Now
add to cart




Range of productCDB6iZ
Product or component type
DC circuit breaker
Mechanical life20000 times
Electrical life10000 times
Suitability for isolationYes
Trip unit technologyThermal-magnetic
Device application
Isolation
Control
short circuit protection
overload protection




Poles description1P， 2P, 3P
[In] Rated current1-63A
[Ue] Rated  voltage1P DC250V;2P/3P DC500V
[Uimp] Rated impulse withstand voltage4KV
Curve code
li(B)/li(C)

li(B):
Protect loads with small short-circuit current
Tripping characteristics: instantaneous tripping range
(4.4-6.6) In
li(C):
Protects general load and distribution cables
Tripping characteristics: instantaneous tripping range (6.8-10.2) In
Breaking capacity6.0 kA
