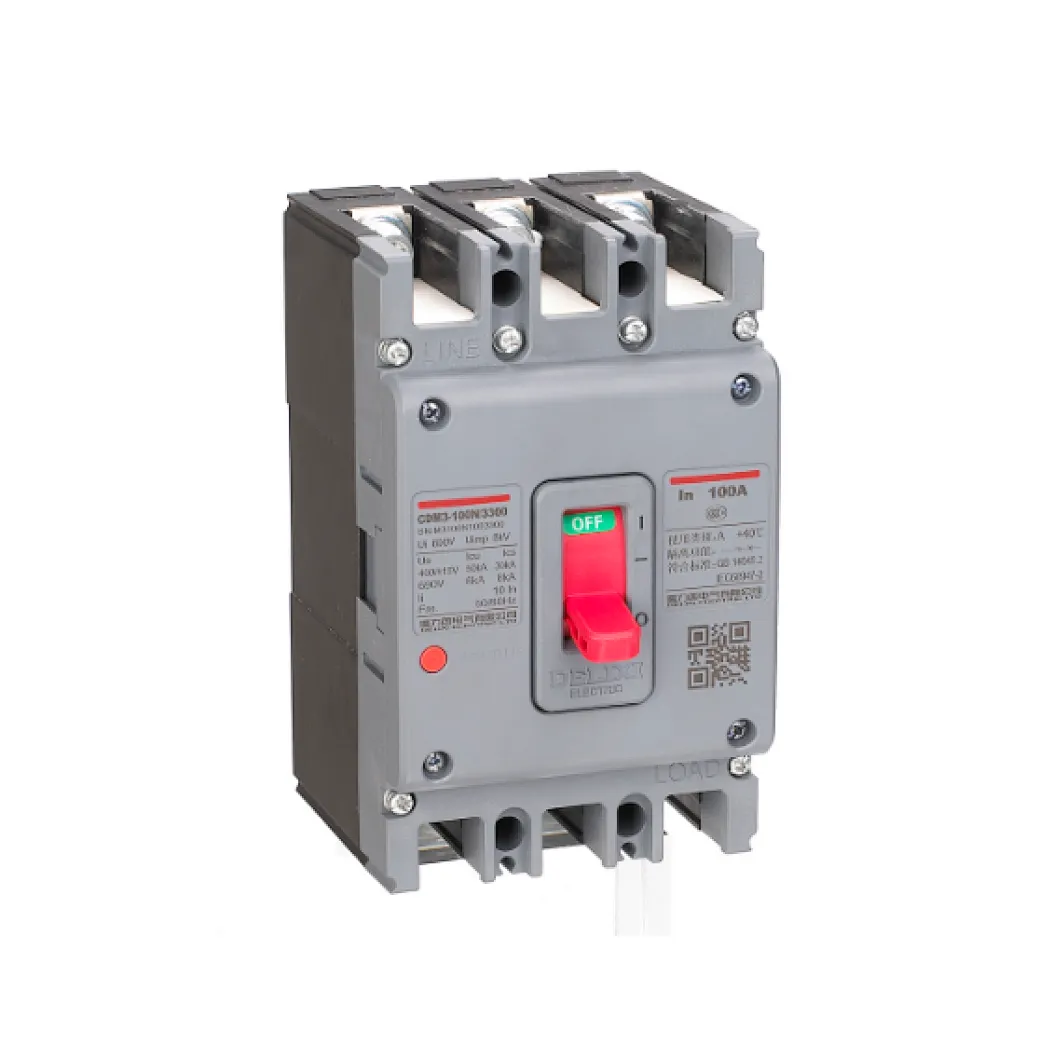

CDM3 Moulded Case Circuit Breaker

CDM3 Moulded Case Circuit Breaker

CDM3
CDM3 provides 9 kinds of shell frame current specifications, covering from 63A to 1250A; compact product volume, and the independent installation function of accessories brought by the removable cover design.
Delivery
FOB
Quantity
Contact Now
add to cart




Range of ProductCDM3
Product or Component TypeMolded Case Circuit Breaker
Device ApplicationIsolation
Trip Unit TechnologyThermal-magnetic/magnetic
Suitability for IsolationYes
Mechanical Durability40000 cycles
Electrical Durability8000 cycles




Poles Description3P, 4P
[In] Rated Current10-1250A
Rated Limit Short-circuit Breaking Capacity（Icu）25kA, 35kA, 50kA, 70kA, 85kA, 100kA
Magnetic Tripping Limit12 x In
[Ui] Rated Insulation Voltage800V
[Uimp] Rated Impulse Withstand Voltage8 kV
Mounting SupportFixed Front / Fixed rear / Plug-in Front / Plug-in Rear
Protection TypePower Distribution Protection
Motor Protection
