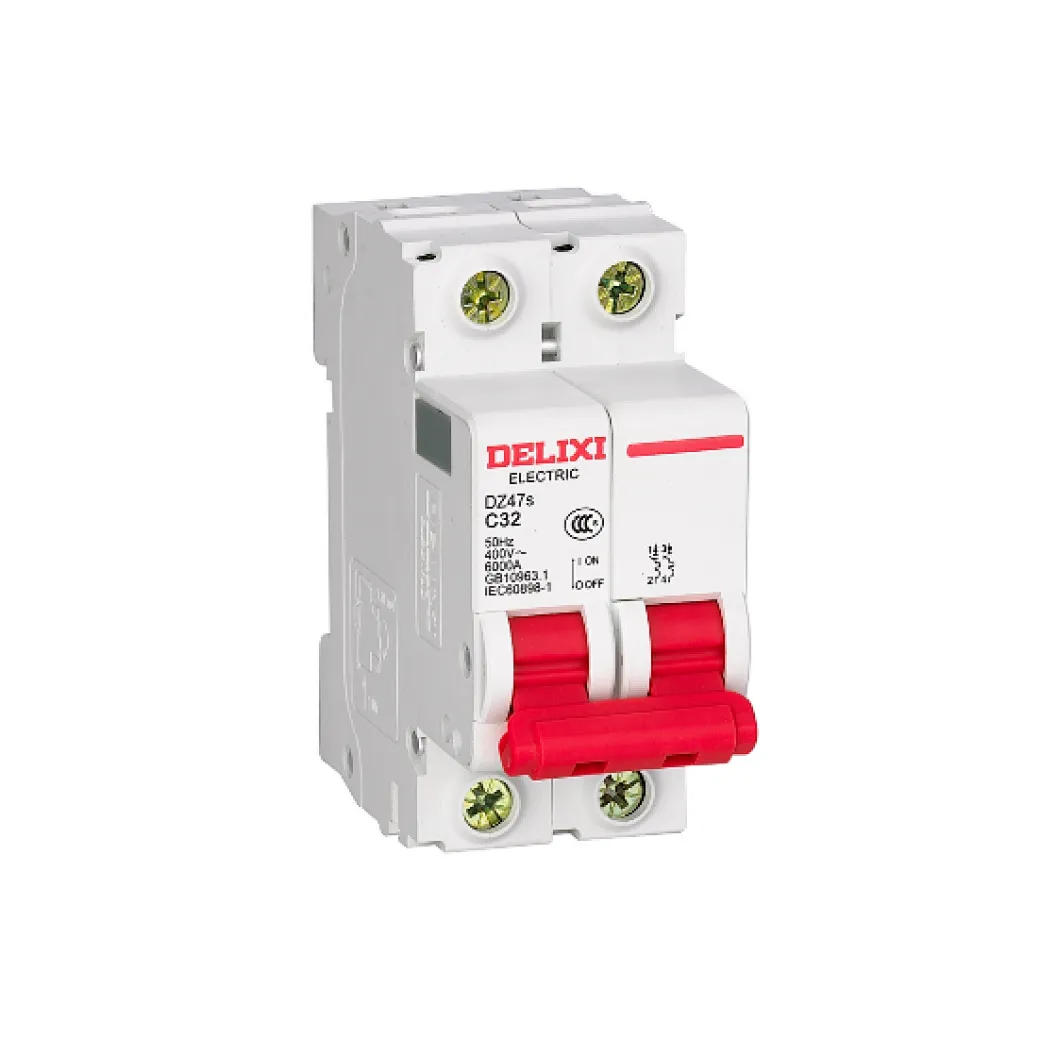

DZ47s Miniature circuit breaker

DZ47s Miniature circuit breaker

DZ47s
DZ47s is a small protective circuit breaker. Applicable to AC 50HZ, rated voltage AC 500V, with functions of overload protection, short circuit protection and control isolation.
Delivery
FOB
Quantity
Contact Now
add to cart




Range of productDZ47s
Product or component typeMiniature circuit-breaker
Device applicationIsolation
Trip unit technologyThermal-magnetic
Suitability for isolationYes
Mechanical durability20000 cycles
Electrical durability10000 cycles




Poles description1P, 1P+N, 2P, 3P, 3P+N, 4P
[In] Rated current1-63A
Curve codeB,C,D
Breaking capacity6 kA
Magnetic tripping limit14 x In
[Ui] Rated insulation voltage500V
[Uimp] Rated impulse withstand voltage(1.2/50)4KV
Cable entryTop
Bottom
Mounting support35 mm DIN rail
Protection typeOverload protection
Short-circuit protection
Connections - terminalsU terminals
Clamping connection capacity<= 25 mm²
Tightening torque2.5 N.m





Dielectric test voltage2.0 kV 50/60 Hz 1 min
Shock resistance30 gn (duration = 11.0 ms) for 3 shocks
StandardsIEC
IP degree of protectionIP40(in distribution box),IP20(installed directly)
Pollution degree2
Ambient air temperature for operation-35…70 °C
Ambient air temperature for storage-40…85 °C
