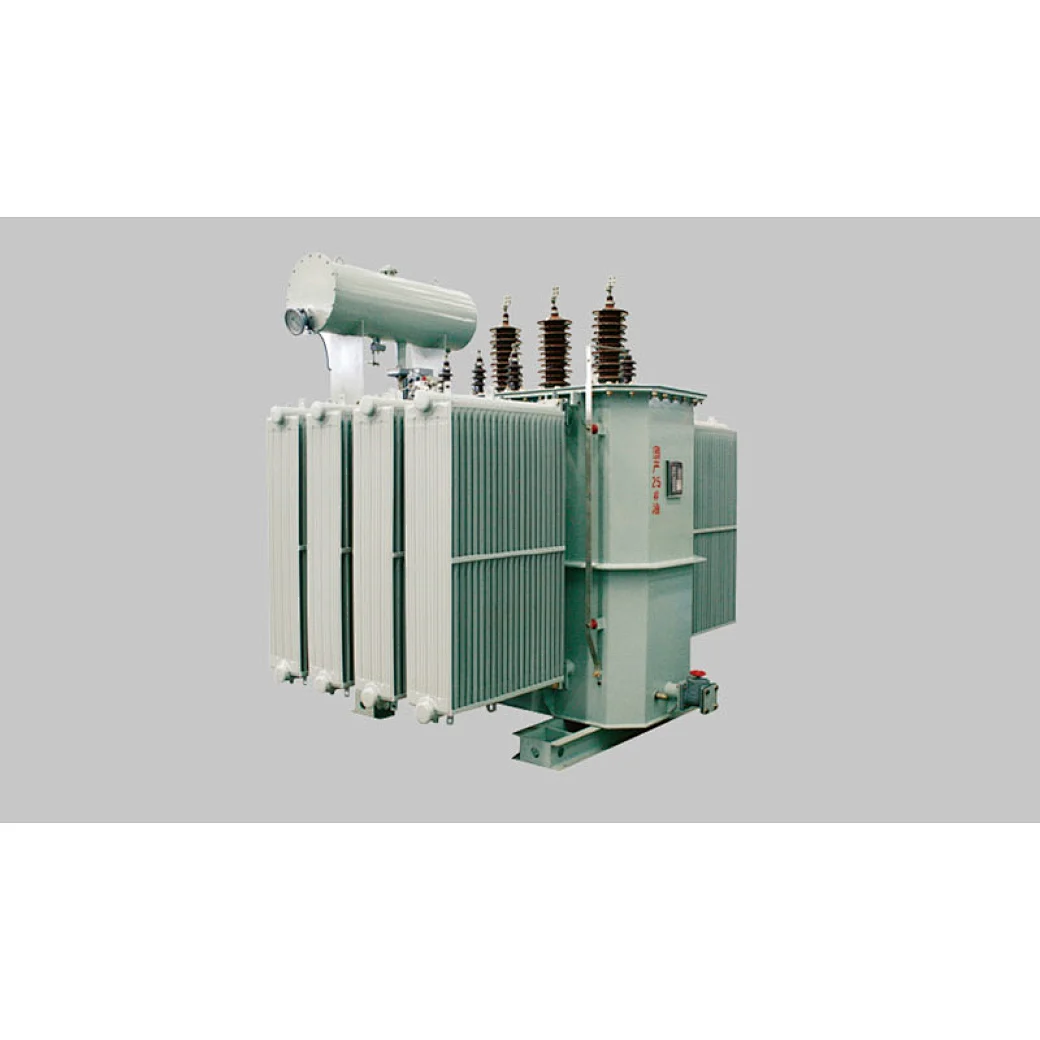

33KV S11 Series Oil Immersed Distribution Transformer
The oil distribution transformer conforms to the technical parameters and requirements of China National Standard GB1094 and GB/T6451, and a series of significant innovation is applies in aspects of material, design and structure. The oil immersed distribution transformer has the features of high efficiency and low loss. It can save a lot of operation cost, and the social benefits are very significant. In conclusion, it is a nationally promoted new product and it is deeply favored by customers.
Installation type: indoor/outdoor/type
Ambient temperature: -25°C ~+40°C
Installation site: in places without corrosive gases and obvious dusts.
1 .Power transformer: GB1094.1 -2-1996,GB1094.3-2003,GB1094.5-2008
2. Three-phase oil-immersed transformers: GB/T6451-2008
1.The features of this oil immersed power transformer are high efficiency and low loss. It can save a lot of operation cost, and the social benefits are very significant.
2.The iron cores are made of the imported high-conduction magnetism, cold-roll, and grain-oriented silicon-steel sheets. The iron cores and windings adopt the vacuum drying and vacuum oil-filling processes, which make the internal moisture down to the very low level.
3.The conservator is hermetically sealed, which make the internal running oil to insolate with oxygen and moisture efficiently.
4. The above features guarantee the transformer does not need to replace the oil during the operation, greatly decrease the maintenance cost, and prolong the service life.
Rated capacity: KVA
Number of phases: three-phase 口 single-phase 口
High voltage: KV Low voltage: KV
Frequency: 50HZ 口 60HZ 口
Tapping range: ±4 x 2.5% 口 ±3 x 2.5% 口 other 口
Connection group: YynO 口 Dyn11 口 other 口
Impedance voltage: standard 口 other 口

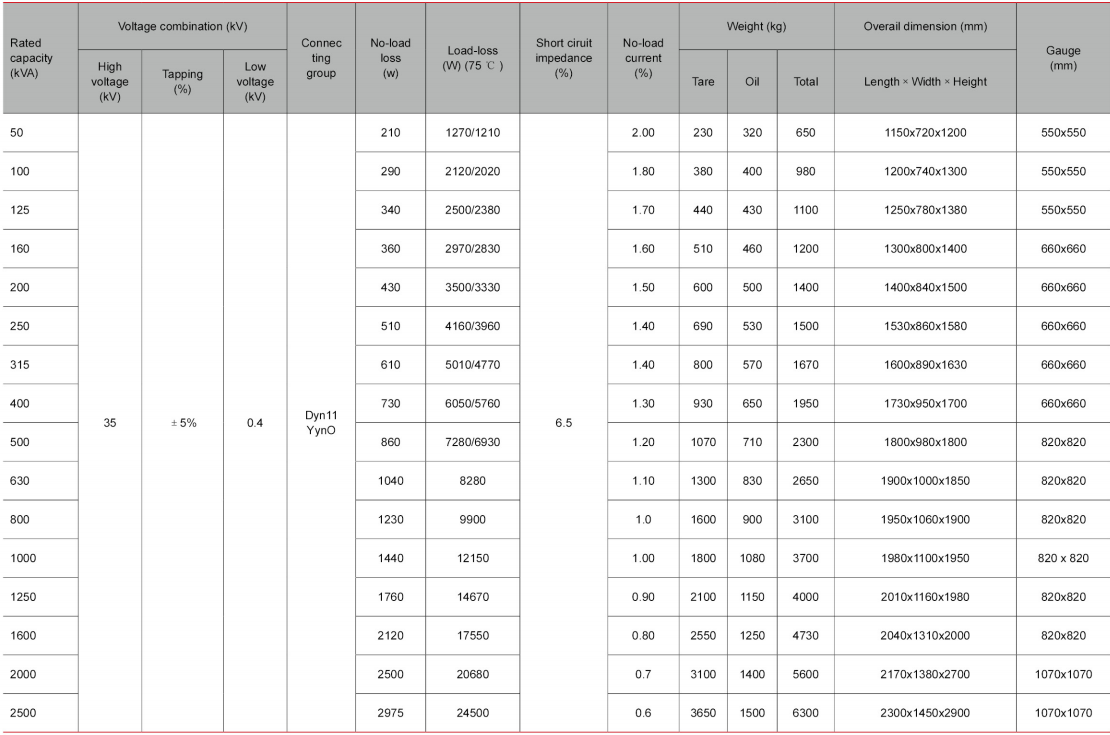

Technical parameters of S11-50-2500/33 series distribution transformers

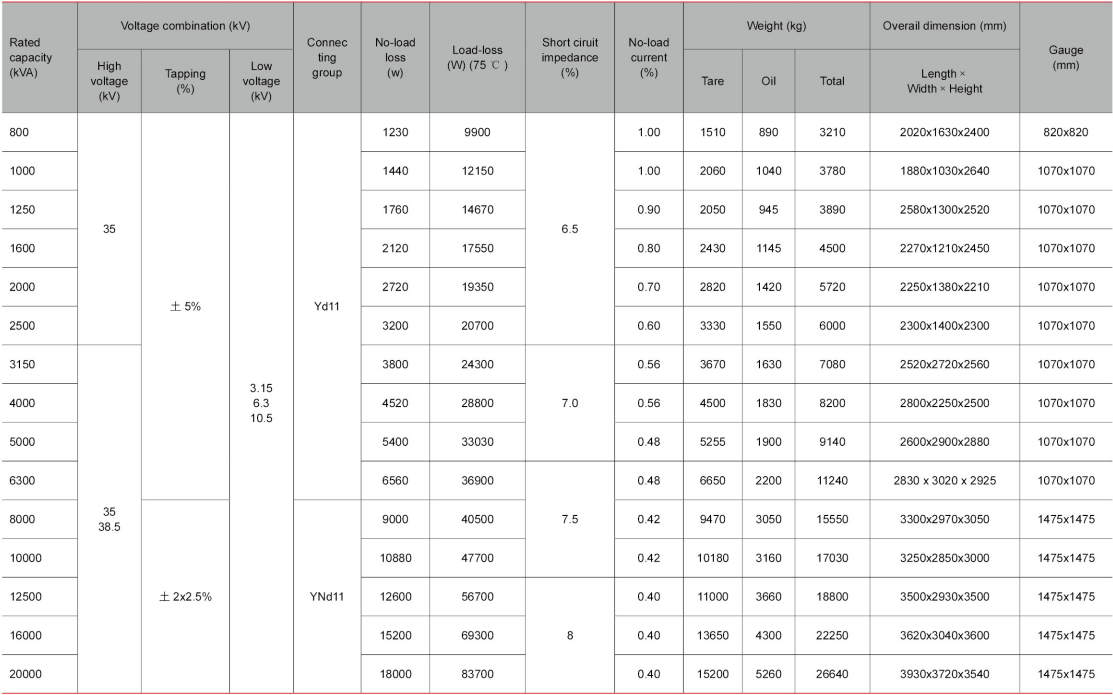

Technical parameters of S11-800 20000/33 series power transformers
