CDI-E100 Series General Purpose VFD
CDI-E100

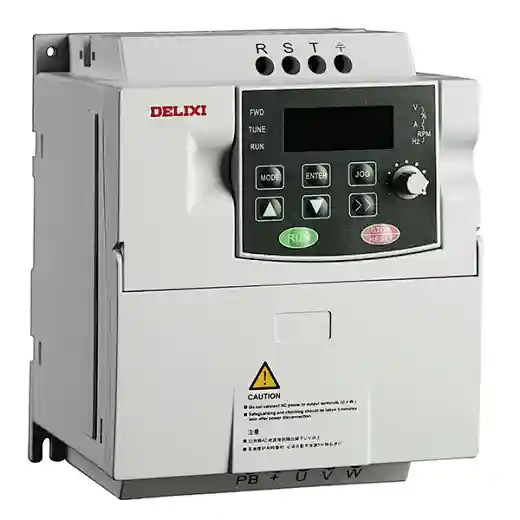

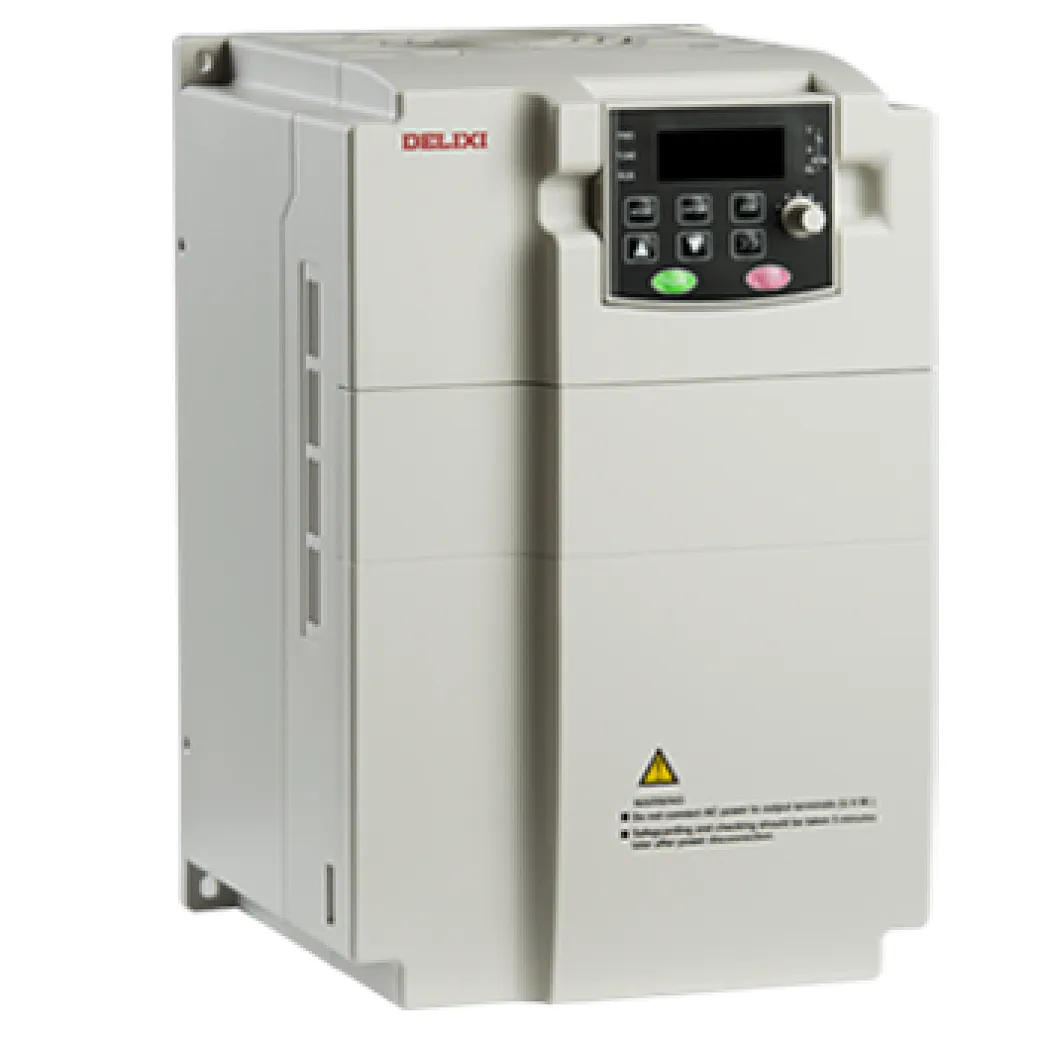

The CDI-E100 series inverter is a general-purpose low-power inverter with optimum control modes including SVC and V/F control, stable performance, diversified functions, high cost performance, optimum structure and elegant appearance.
Quantity
Introduction
The CDI-E100 series inverter is a general-purpose low-power inverter with optimum control modes including SVC and V/F control, stable performance, diversified functions, high cost performance, optimum structure and elegant appearance.
Technical Characteristics
♦ Compact Structure
Optimum structure and elegant appearance; can be installed through both slides and holes; easy to use.
♦ Reliable Small Integrated Module
Reliable small integrated module to ensure good quality and performance at a lower price.
♦ Integrated Communication Module
Standard internal RS-485 communication module which enables standard MODBUS-RTUcommunication; through such a module, one host computer can communicate with several inverters simultaneously and quickly with perfect anti-interference performance.
♦ Flexible Type Selection
The 15kW or below types have standard internal brake units, and the 18.5-22kW types can have optional internal brake units.
The 11kW, 15 kW types have standard DC inductors, and 18.5-22kW types can have optional DC inductors
Applications
Mainly applies to low-power non-VC situations with demanding requirements for input/output.Carving machine, textile machine, glass-making machine and dyeing machine.
Accessories
External keyboard, extension cord.
The CDI-E100 series inverter is a general-purpose low-power inverter with optimum control modes including SVC and V/F control, stable performance, diversified functions, high cost performance, optimum structure and elegant appearance.
Technical Characteristics
♦ Compact Structure
Optimum structure and elegant appearance; can be installed through both slides and holes; easy to use.
♦ Reliable Small Integrated Module
Reliable small integrated module to ensure good quality and performance at a lower price.
♦ Integrated Communication Module
Standard internal RS-485 communication module which enables standard MODBUS-RTUcommunication; through such a module, one host computer can communicate with several inverters simultaneously and quickly with perfect anti-interference performance.
♦ Flexible Type Selection
The 15kW or below types have standard internal brake units, and the 18.5-22kW types can have optional internal brake units.
The 11kW, 15 kW types have standard DC inductors, and 18.5-22kW types can have optional DC inductors
Applications
Mainly applies to low-power non-VC situations with demanding requirements for input/output.Carving machine, textile machine, glass-making machine and dyeing machine.
Accessories
External keyboard, extension cord.
| Frequency inverter type | Rated capacity | Rated input current | Rated output current | Matchable Motor |
| (KVA) | (A) | (A) | (kW) | |
| S2 (Single-phase 220V, 50/60Hz) (Built-in Brake Unit) | ||||
| CDI-E100G0R4S2B | 0.8 | 5 | 2.3 | 0.4 |
| CDI-E100G0R75S2B | 1.5 | 9 | 4 | 0.75 |
| CDI-E100G1R5S2B | 2.7 | 15.7 | 7 | 1.5 |
| CDI-E100G2R2S2B | 3.8 | 27 | 10 | 2.2 |
| T2 (Three-phase 220V, 50/60Hz) (Built-in Brake Unit) | ||||
| CDI-E100G0R4T2B | 0.8 | 2.3 | 2.3 | 0.4 |
| CDI-E100G0R75T2B | 1.5 | 6 | 4 | 0.75 |
| CDI-E100G1R5T2B | 2.7 | 8.8 | 7 | 1.5 |
| CDI-E100G2R2T2B | 3.8 | 12.5 | 10 | 2.2 |
| T4 (Three-phase 380V, 50/60Hz) （15kW and below the standard built-in brake unit） | ||||
| CDI-E100G0R75T4B | 1.5 | 3.4 | 2.3 | 0.75 |
| CDI-E100G1R5T4B | 3 | 5 | 3.7 | 1.5 |
| CDI-E100G2R2T4B | 4 | 5.8 | 5.1 | 2.2 |
| CDI-E100G3R7T4B | 5.9 | 10.5 | 9 | 3.7 |
| CDI-E100G5R5/P7R5T4B | 8.5/11 | 15.5/20.5 | 13/17 | 5.5/7.5 |
| CDI-E100G7R5/P011T4B | 11/17 | 20.5/26 | 17/25 | 7.5/11 |
| CDI-E100G011/P015T4BL | 17/21 | 26/35 | 25/32 | 11/15 |
| CDI-E100G015/P018.5T4BL | 21/24 | 35/38.5 | 32/37 | 15/18.5 |
| CDI-E100G018.5/P022T4 | 24/30 | 38.5/46.5 | 37/45 | 18.5/22 |
| CDI-E100G022/P030T4 | 30/40 | 46.5/62 | 45/60 | 22/30 |
| CDI-E100G030/P037T4 | 40/50 | 62/76 | 60/75 | 30/37 |
| CDI-E100G037/P045T4 | 50/60 | 76/92 | 75/90 | 37/45 |
| CDI-E100G045/P055T4 | 60/72 | 92/113 | 90/110 | 45/55 |
| CDI-E100G055/P075T4 | 72/100 | 113/157 | 110/152 | 55/75 |
| CDI-E100G075/P093T4 | 100/116 | 157/180 | 152/176 | 75/93 |
| CDI-E100G093/P110T4 | 116/138 | 180/214 | 176/210 | 93/110 |
| CDI-E100G110/P132T4 | 138/167 | 214/256 | 210/253 | 110/132 |
| CDI-E100G132/P160T4 | 167/200 | 256/305 | 253/300 | 132/160 |
| CDI-E100G160/P185T4 | 200/224 | 305/344 | 300/340 | 160/185 |
| CDI-E100G185/P200T4 | 224/250 | 344/383 | 340/380 | 182/200 |
| CDI-E100G200/P220T4L | 250/276 | 383/425 | 380/420 | 200/220 |
| CDI-E100G220T4L | 276 | 425 | 420 | 220 |
| CDI-E100P250T4L | 316 | 484 | 480 | 250 |
| CDI-E100G250/P280T4L | 316/355 | 484/543 | 480/540 | 250/280 |
| CDI-E100G280/P315T4L | 355/395 | 543/605 | 540/600 | 280/315 |
| CDI-E100G315/P355T4L | 395/467 | 605/714 | 600/680 | 315/355 |
| CDI-E100G355/P375T4L | 447/467 | 683/714 | 680/710 | 355/375 |
| CDI-E100G375T4L | 467 | 714 | 710 | 375 |
| CDI-E100P400T4L | 494 | 753 | 750 | 400 |
| CDI-E100G400T4L | 494 | 753 | 750 | 400 |
| CDI-E100P500T4L | 612 | 934 | 930 | 500 |
| CDI-E100G500T4L | 612 | 934 | 930 | 500 |
| CDI-E100G630T4L | 790 | 1206 | 1200 | 630 |
