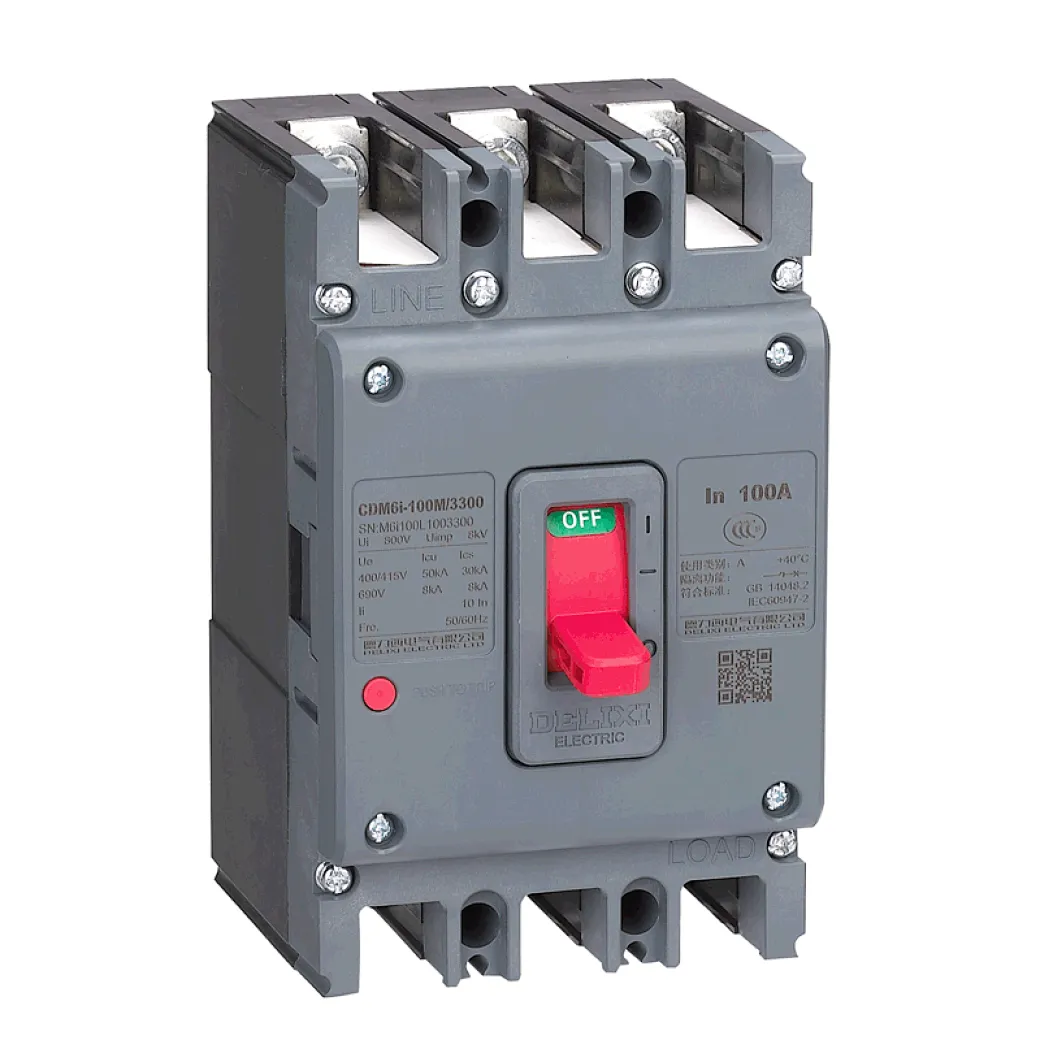

CDM6i Moulded Case Circuit Breaker
*Technical Parameter | |||||||||||||
Shell Frame Current | CDM6i-63 | CDM6i-100 | CDM6i-125 | CDM6i- 160 | |||||||||
Rated Voltage Ue(V) | 400/415 | 400/415/690 | 400/415 | 400/415/690 | |||||||||
Rated Insulation Voltage Ui(V) | 800 | 800 | 800 | 800 | |||||||||
Rated Impulse Withstand Voltage Uimp(KV) | 8 | 8 | 8 | 8 | |||||||||
Rated Current In(A) | 10-63 | 10-100 | 16-100 | 10-125 | 100-160 | ||||||||
Poles (4P-A/B Type) | 3/4 | 3/4 | 3 | 3/4 | 3/4 | ||||||||
Frequency(HZ) | 50/60 | 50/60 | 50/60 | 50/60 | |||||||||
| L | M | L | M | S | L | L | M | S | |||||
| Rated Ultimate Short-circuit Breaking Capacity Icu(KA) | AC 400/415V | 35 | 50 | 35 | 50 | 70 | 35 | 35 | 50 | 70 | |||
| AC 690V | 8 | 8 | 8 | ||||||||||
| Rated Operating Short-circuit Breaking Capacity Icu(KA) | AC400/415V | 35 | 50 | 35 | 50 | 70 | 35 | 35 | 50 | 70 | |||
| AC 690V | 8 | 4 | 8 | ||||||||||
Mechanical Life | With Maintenance | 4000 | 4000 | 4000 | 4000 | ||||||||
Without Maintenance | |||||||||||||
Electrical Life | AC 415V | 8000 | 8000 | 8000 | 8000 | ||||||||
Protection Type | Power Distribution Protection | ■ | ■ | ■ | ■ | ||||||||
Motor Protection | ■ | ■ | ■ | ■ | |||||||||
Tripping method | Thermomagnetic Tripping | ■ | ■ | ■ | ■ | ||||||||
Magnetic Tripping | ■ | ■ | ■ | ■ | |||||||||
Connection Method | Fixed Front Connecion | ■ | ■ | ■ | ■ | ||||||||
Fixed Rear Connecion | ■ | ■ | ■ | ■ | |||||||||
| Plug-in Front Connecion | ■ | ■ | ■ | ■ | |||||||||
| Plug-in Rear Connecion | ■ | ■ | ■ | ■ | |||||||||
| Rraw Out Type | - | - | - | - | |||||||||
| Accessory | Undervoltage Release MN | ■ | ■ | ■ | ■ | ||||||||
Shunt Release MX | ■ | ■ | ■ | ■ | |||||||||
Alarm Contacts AL | ■ | ■ | ■ | ■ | |||||||||
| Auxiliary Contact(one close one open) | ■ | ■ | ■ | ■ | |||||||||
| Auxiliary Contact(two close two open) | ■ | ■ | ■ | ■ | |||||||||
Expand Terminal | ■ | ■ | ■ | ■ | |||||||||
DC/AC Electric Operation Mechanism | ■ | ■ | ■ | ■ | |||||||||
Round Manual Operation Mechanism | ■ | ■ | ■ | ■ | |||||||||
Square Manual Operation Mechanism | ■ | ■ | ■ | ■ | |||||||||
Round Extend Rotation Handle | ■ | ■ | ■ | ■ | |||||||||
| Square Extend Rotation Handle | ■ | ■ | ■ | ■ | |||||||||
Interval Partition | ■ | ■ | ■ | ■ | |||||||||
Derive Product | Overload Alarm Without Tripping | - | - | ■ | ■ | - | - | ■ | ■ | ||||
| Accessory Modular Installion | ■ | ■ | ■ | ■ | |||||||||
Isolation Function | ■ | ■ | ■ | ■ | |||||||||
| Size-connection Before Fixed W*H*D | 3P(mm) | 75*130*68 | 75*130*68 | 92*150*93.5 | 75*130*68 | 107*165*76 | 107*165*94 | ||||||
| 4P(mm) | 100*130*68 | 100*130*68 | 122*150*93.5 | 100*130*68 | 142*165*76 | 142*165*94 | |||||||
