CDW6i Air Circuit Breaker

CDW6i Air Circuit Breaker

CDW6i
Quantity
Contact Now
add to cart

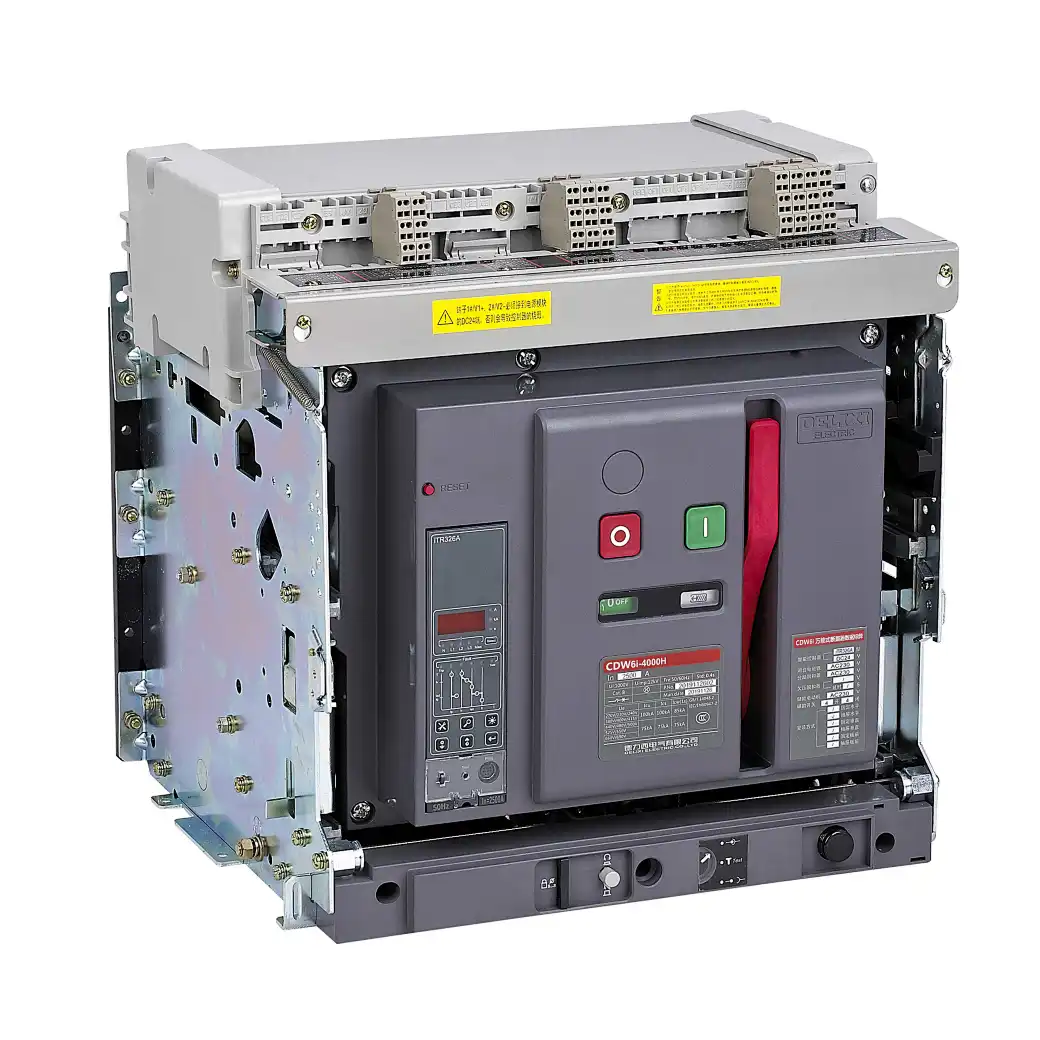

Low Voltage Distribution CDW6I Air Circuit Breaker
ITR326 air circuit breakerITR326 air circuit breaker

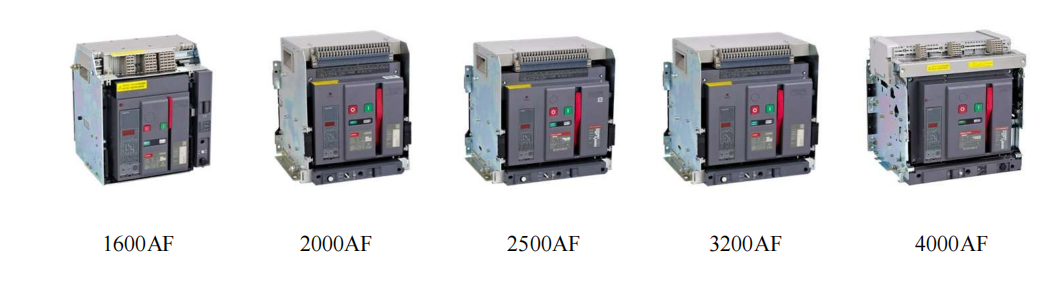

  • Rack class: 1600AF,2000AF,2500AF,3200AF,4000AF.6300AF
  • Breaking grade: N&H&M
  • Rated currentin (a): 400~6300
  • The rated voltage AC UE (v): 220v/230v/240v/380v/400v/415v/440V/480V/500V/525V/550V/660V/ 690V800V/900V/950V/1000V/1140VU( V): 1000 VN&Htype), 1250V (Mtype)
  • Polar Poles: 3 & 4
  • Installation mode: fixed type & drawer type
  • Wiring mode: horizontal rear connection and vertical rear connection

Intelligent tripping device
  • iTR326 type (basic type)
          Basic function: protection function (L, S, I&G)

  • Type iTR326A (standard)
          Basic protection
          Basic measurement
          Auxiliary function

  • iTR326H(Advanced)
          Basic+Advanced Protection
          Multiple measurement
          Auxiliary function
          Special function
          Communication function
itr326 type intelligent tripping device

Attachment
  • Locking, interlocking and protection accessories: button protection lock, mecha door interlock and safety baffle lock.
  • Indication accessories: prepare closing contact, three-position signal contact, auxiliary contact.
  • Remote operating accessories: opening and closing coil, under-voltage coil, electrical mechanism, electrical reset, and reclosing with voltage detection.
  • Circuit protection accessories: N-phase external transformer, grounding transformer.
  • Attachment type: horizontal, vertical, extended row and extended row
