High-power Compensation AC Voltage 3 Phase Stabilizer

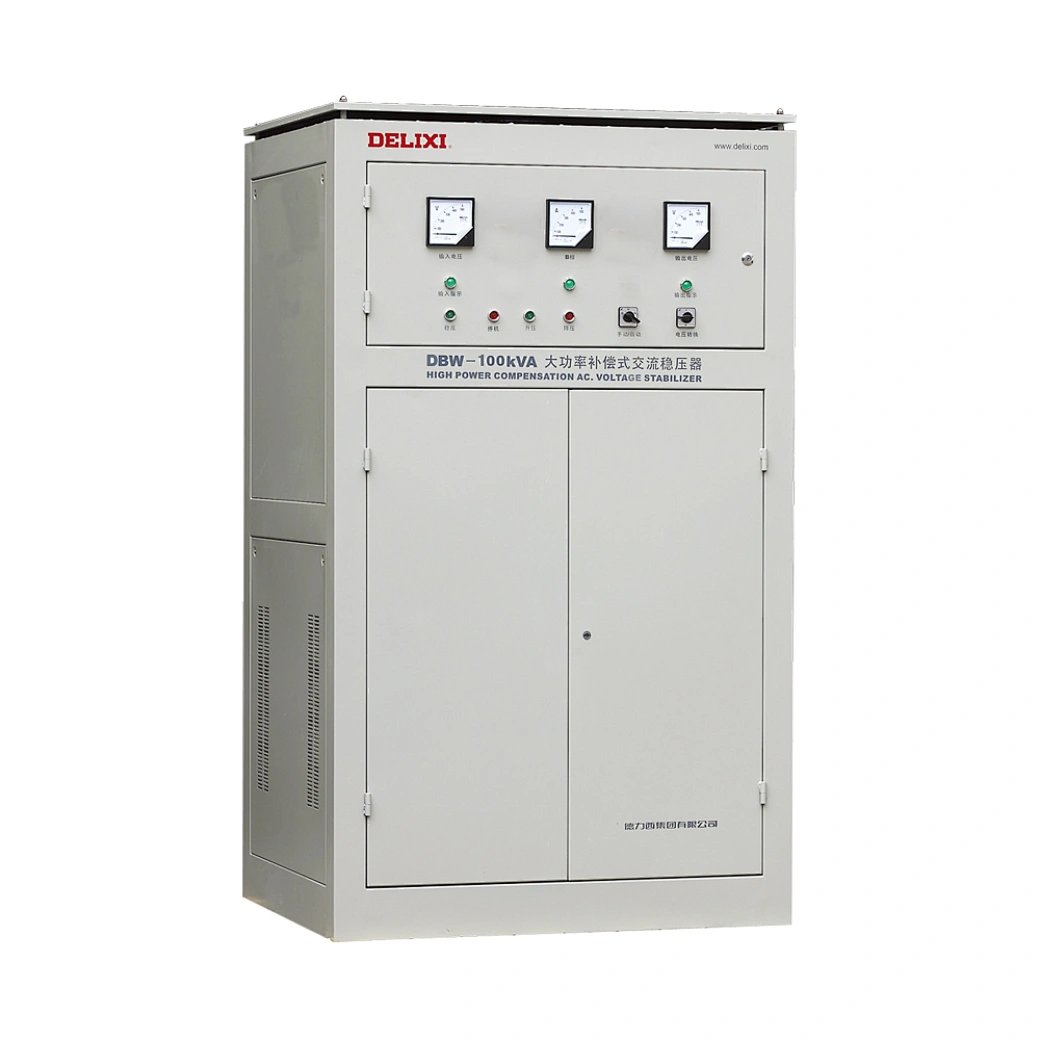

DBW/SBW Series High-power Compensation AC Voltage 3 Phase Stabilizer

DBW/SBW
Quantity
Contact Now
add to cart




Range of productDBW/SBW
Product or component typeServo motor type three-phase stabilizer
Device applicationhigh precise application




Output VoltageAccuracy of stabilized voltage: 380 V (or 400 V) ± 4 %
Range of input voltage304..456 V
Capacity range10 ~ 2000 KVA
Customized input range250..423 V or 304..470 V
Rated Frequency50/60 Hz
Standard functionOutput undervoltage protection, Output overvoltage protection, short circuit protection
 Extended function (optional)Fan, Input undervoltage protection, temperature rise protection, time delay, by-pass, overload protection, Phase failure protection, Surge protector
Voltage-regulating speed< 1 s (variation of input voltage is 10 %)
Temperature rise< 60 K (with rated load)
Display ModeDial Meter (Panel Meter) or LED or LCD
 Insulation Resistance≥ 5 MΩ
Efficiency> 95 %
