Oil-immersed Type Current Potential Transformer

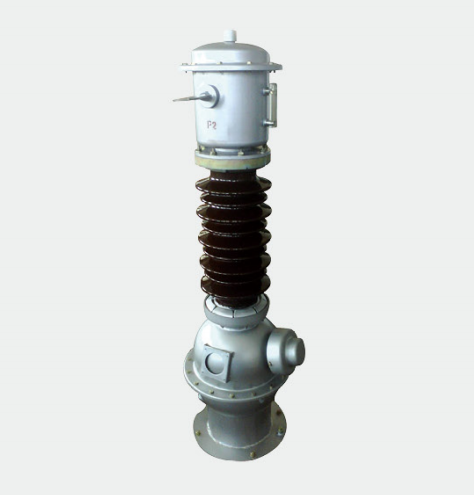

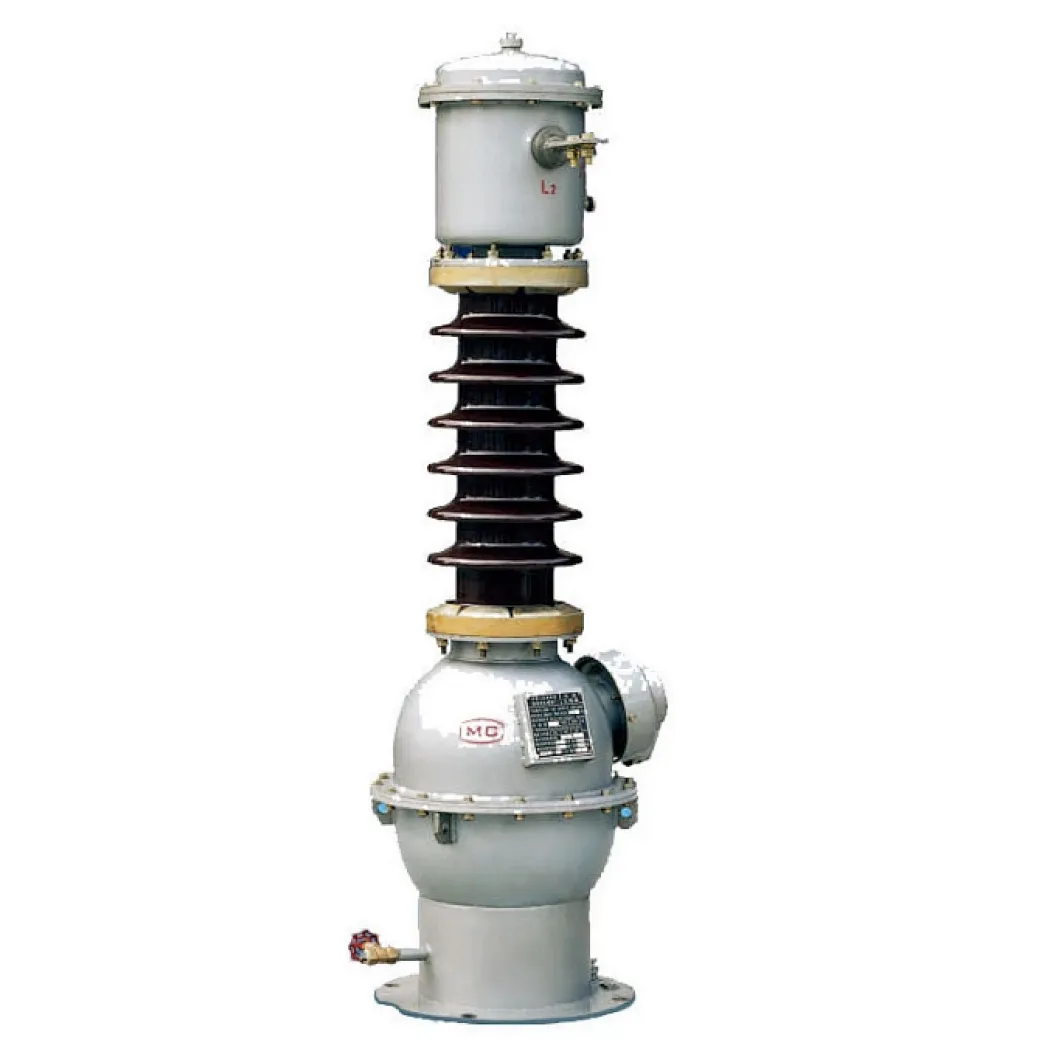

LB6-33(W) Oil-immersed Type Current Potential Transformer

Country of Origin
Contact Now
add to cart

This potential current transformer is applicable to electric power systems of 50Hz and 33kV, used for current, electric energy measuring and relaying protection. It is a kind of procelain insulated outdoor used current transformer with full-sealed structure, chain winding, uniform electric field distribution, and low dielectric dissipation. The transformer oil immersed type is suitable for areas of altitude up to 1000m, ambient temperature with in -30°C ~+40°C , applicable for polluted areas of class Ⅰ、Ⅱ、Ⅲ. Expander can be installed at request.

current potential transformer

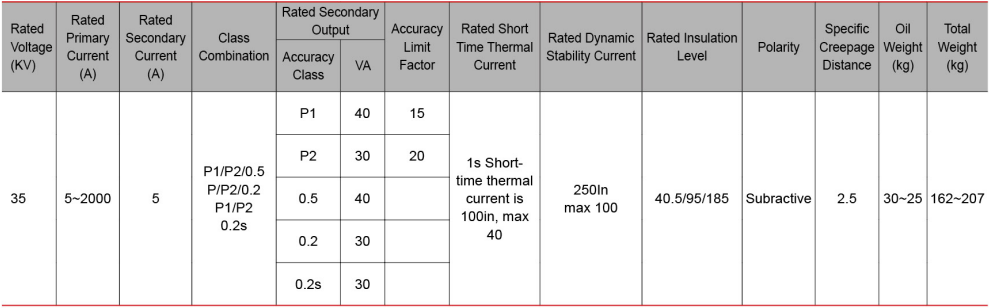

Technical Data

Technical data

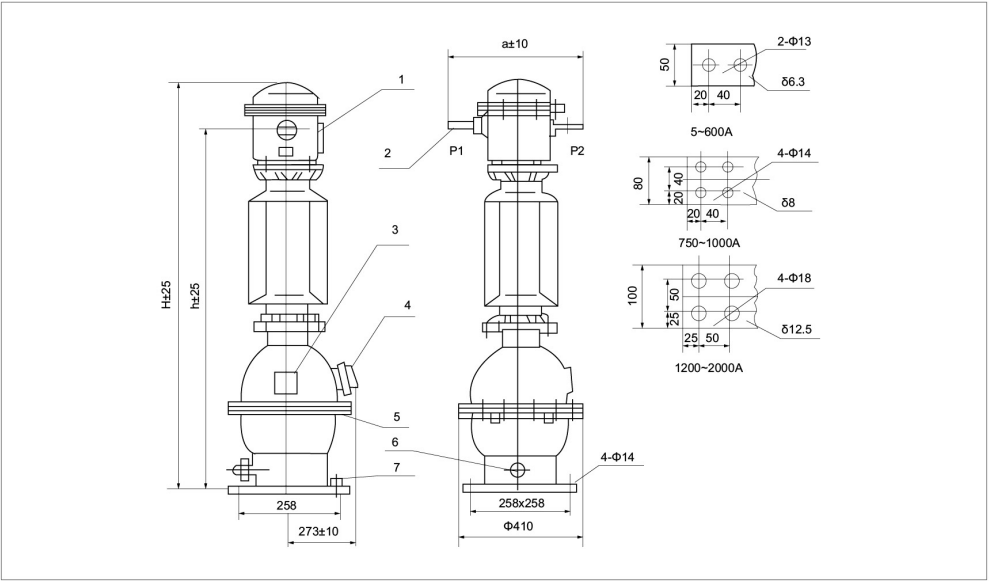

Outline Dimension

Outline dimension
