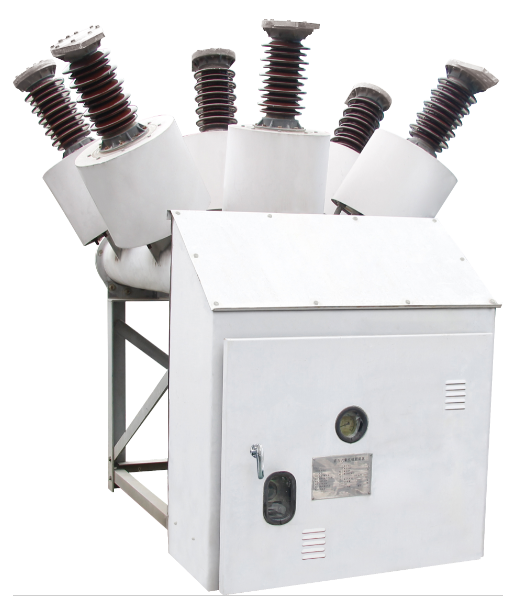

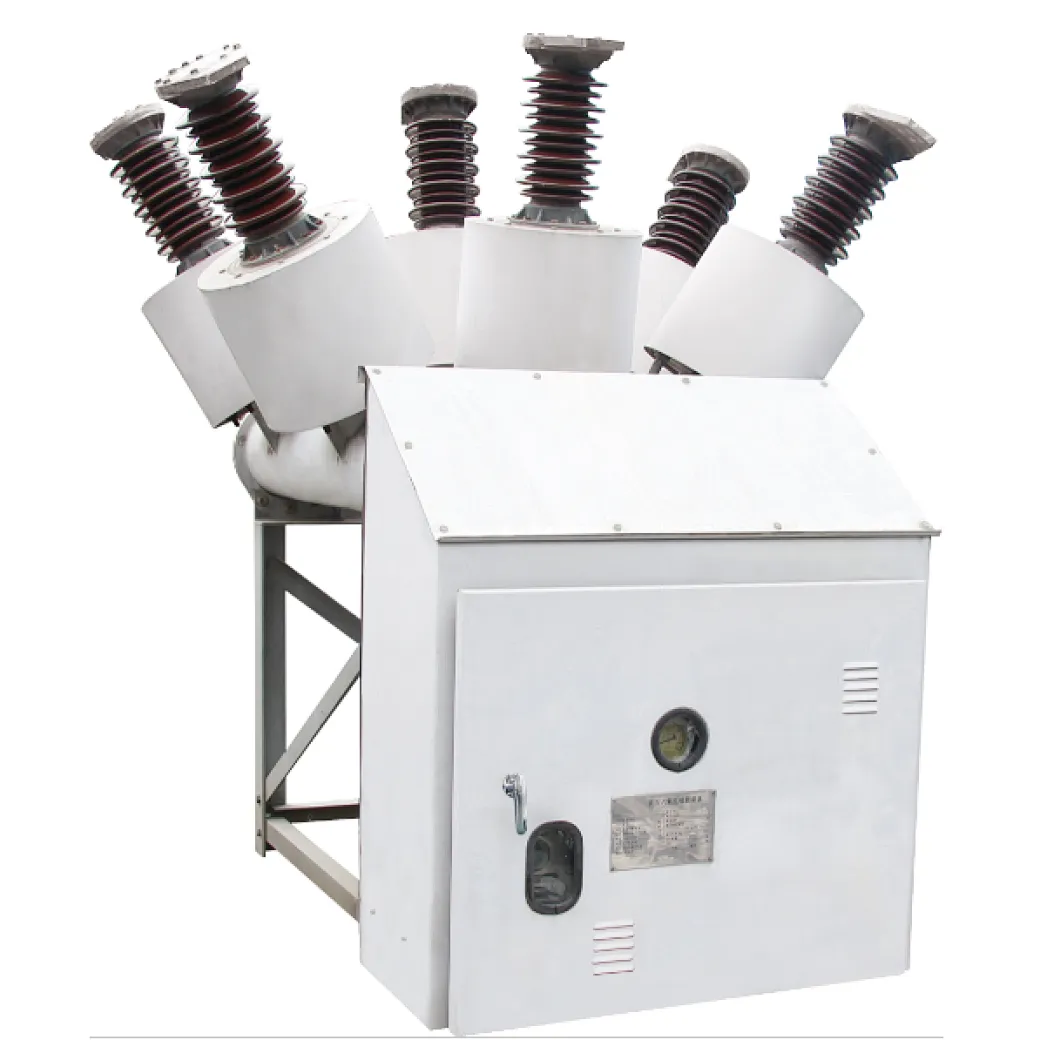

LW24-33KV Outdoor Sulfur Hexafluoride Circuit High Voltage Breaker (Tank Type)
LW24-33 Outdoor High Voltage Sulfur Hexafluoride Circuit Breaker (Tank Type)
High voltage breaker is a new type of self-powered arcextinguishing structure developed by our company. It is equipped with CT20-II type spring operating mechanism. The sulfur hexafluoride circuit breaker has reliable performance, stable operation and three-pole mechanical linkage operation. With its own current transformer, compact structure, save area. It has the ability to open and disconnect capacitive loads and inductive load currents, can be used simultaneously as a special circuit breaker for reactive power compensation.
1. With its own current transformer, compact structure, small area. The whole spring operating mechanism has low noise and convenient maintenance.
2. Arc extinguishing chamber is horizontal arrangement, with low center of gravity, high strength of porcelain sleeve, good seismic resistance and seismic fortification intensity of 9 degrees.
3. Product site debugging is convenient, operation and maintenance workload is less.
4. Hv vacuum circuit breaker is suitable for use in low temperature area, and the tank is fitted with insulation belt,applicable to minimum -40 environment

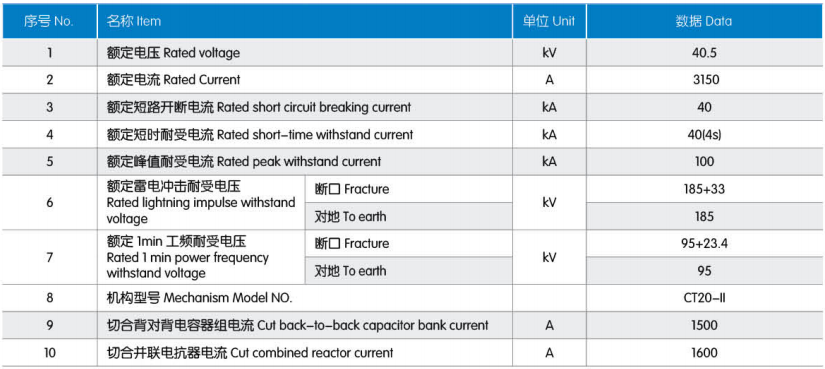

Main Technical Parameters

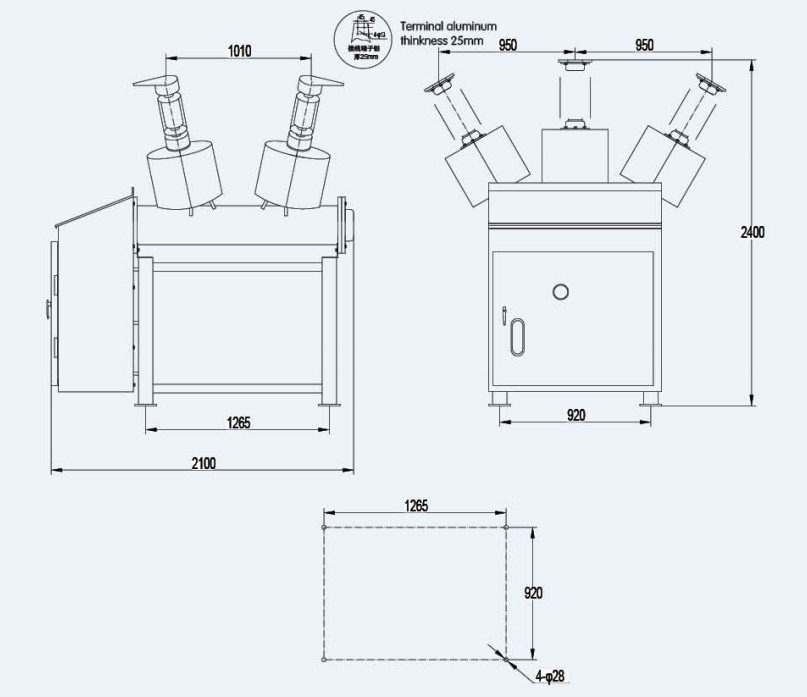

Appearance and Installation Dimensions
