110kv power transformer

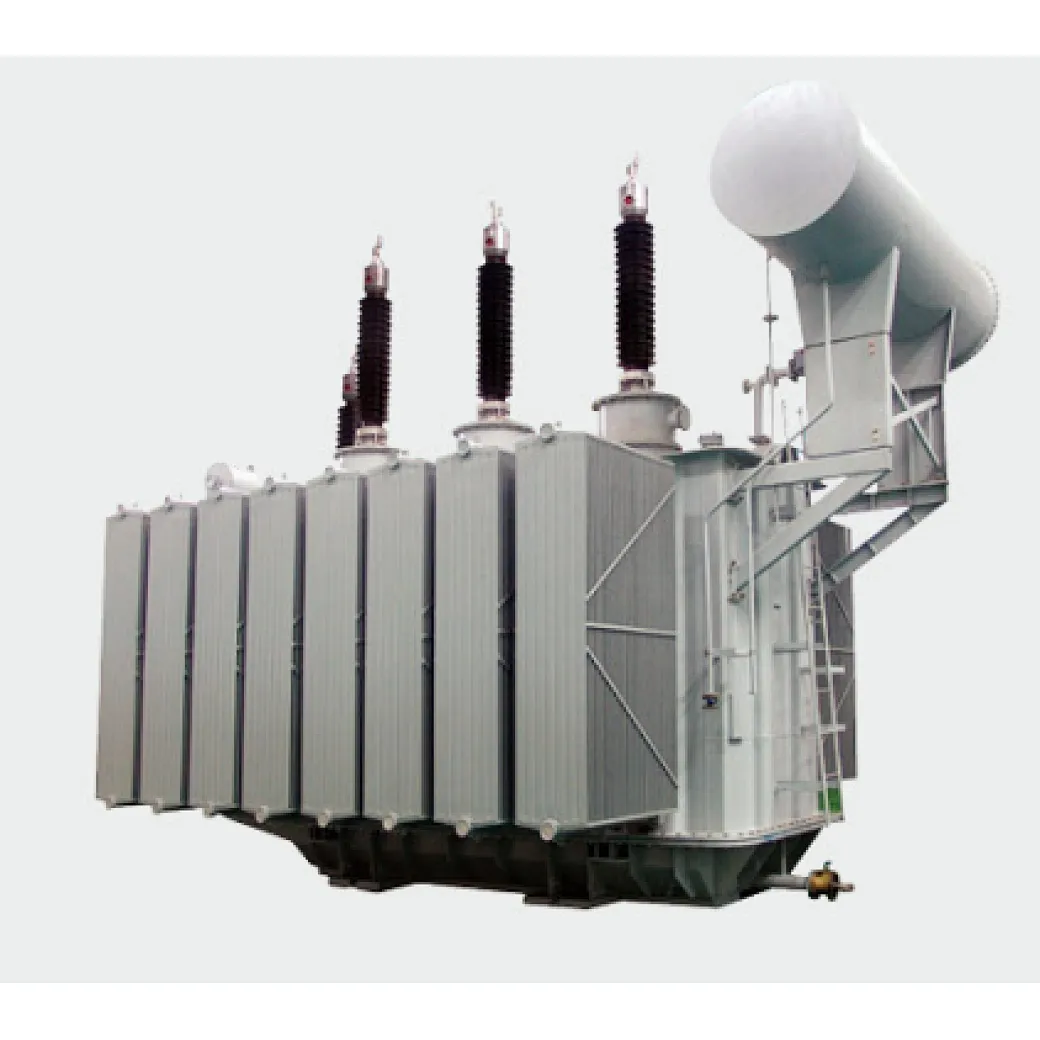

S10/S11 Series 110kV Power Transformer

S10/S11-110kV
Quantity
Contact Now
add to cart

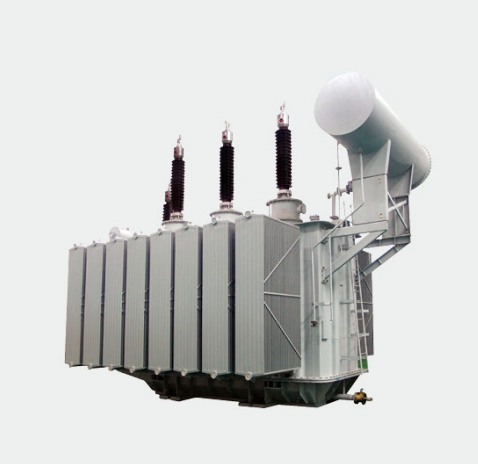

110kV Series Power Transformer

Product Features
1 High Anti Short Circuit, Good Mechanical Property;
2 Low Loss, Low Partial Discharge, Low Noise;
3 No Leakage, Free Hoisting, Safe And Reliable;
4 Advanced Structure, Convenient Maintenance.

S10 / S11 Series 110kV Power Transformer

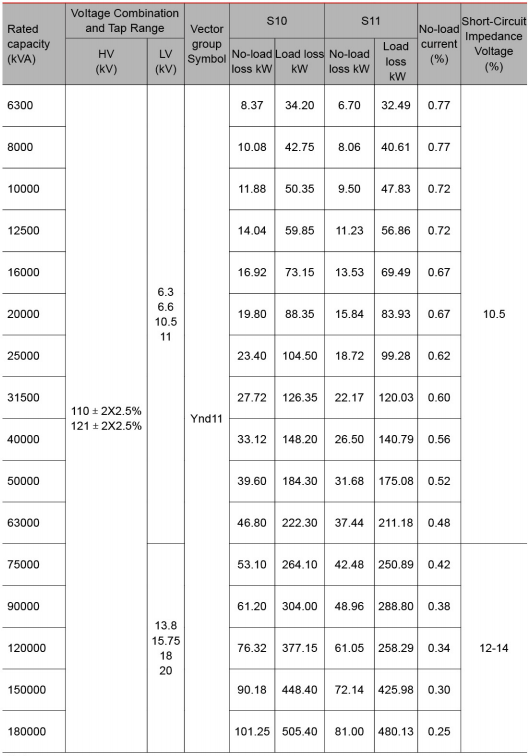

6300KVA-180000KVA 3-Phase Duplex Winding Off-load
Tap-Changing Power Transformer

Note
1. -5% tap position is the maximum current tap
2. For step-up transformers, non-tap structure is suitable. According to requirements, taps can be set.

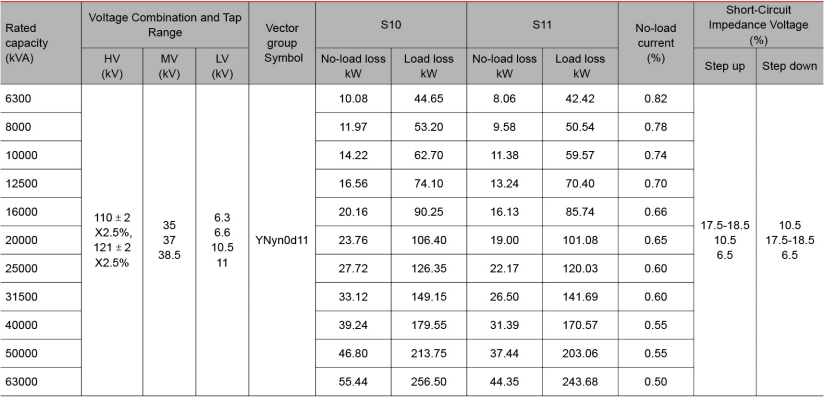

6300KVA-63000KVA 3-Phase 3-Winding Off-load Tap-Changing Power Transformer

Note
1. High, medium and low voltage winding capacity distribution (100/100/100)%;
2. According to requirements, the vector group can be YNd11 y10
3. According to requirements, medium voltage can choose different voltage from the value listed in the table or set taps.

4. -5% tap position is the maximum current tap.
5. For step-up transformers, non-tap structure is suitable. According to requirements, taps can be set.

SZ10 / SZ11 Series 110kV Power Transformer

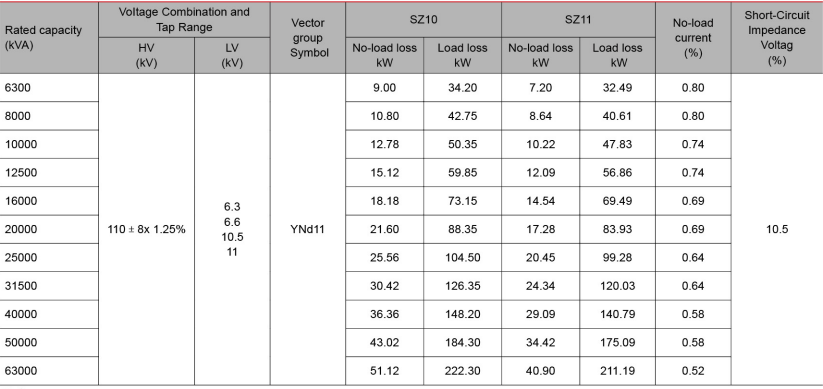

6300KVA-63000KVA 3-Phase Duplex Winding On-Load Tap-Changing Power Transformer

Note
1. For on-load tap-changing transformers, now only step-down structure products are provided.

2. According to requirements, other voltage combination can be provided.
3. -10% tap position is the maximum current tap.

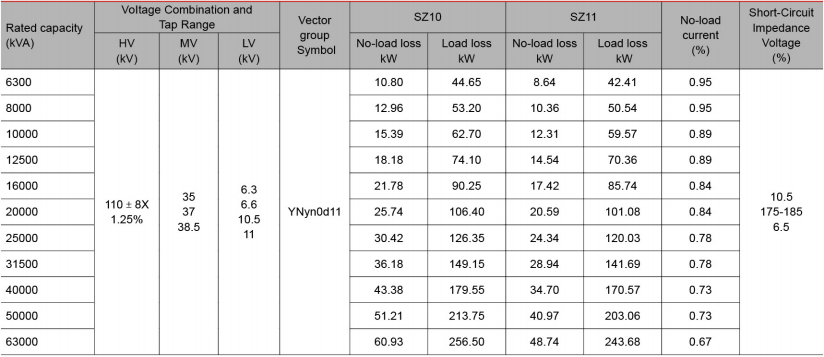

6300KVA-63000KWK 3-Phase 3-Winding On-Load Tap-Changing Power Transformer

Note
1. For on-load tap-changing transformers, now only step-down structure products are provided.
2. High, medium and low voltage winding capacity distribution (100/100/100)%,
3. According to requirements, the vector group can be YNd11y10,
4. -10% tap position is the maximum current tap.

5: According to requirements, medium voltage can choose different voltage from the value listed in the table or set taps.

S10、S11 Series 110kV Power Transformer

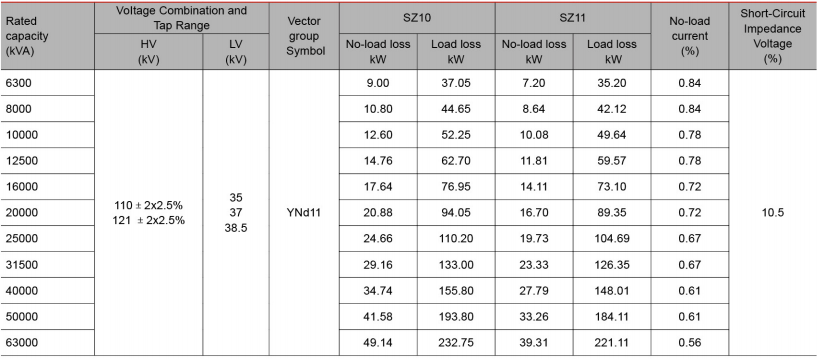

6300KW-63000KW 3-Phase Duplex Winding LV 35kV Off-load Tap-Changing Power Transformer

Note

1. Products with capacity not included in this form will be also available based on the requirement of the user.and their performance data will rely on specific requirement.
2. We can provide products with special design according to different operation enviorment.
3. Customers can suggest their requirement of MV and tap range besides the value in the form and the unsymmetry tap range are available for HV tap regulation choice.
4. Different Impedance Voltage Value are available for customers choice besides the value in the form.
5. The final dimension will be subject to the drawing which designed after the contract signs.
